Jointing Narrow Boards (Yet Another Dog Incarnation), Long-Tailboard Dovetails

I decided that the break-in project for my new workbench would be a bookshelf. Because the bench can handle six-foot boards, and I can still reach things that are six feet high, I decided to make the shelves six feet high.

Two workholding problems popped up in the course of the project. One was an oldie, and the other one was new. Let’s start with the old one.

I’ve found it annoying to joint narrow boards because I usually have to make a lot of them. I have a jointer fence for my Veritas jointer, but if a board just isn’t wide enough, something always obstructs the fence because it projects below the opposite edge being planed. For some time, I’ve dreamed of being able to secure a board on the edge of the bench so that I could use my jointer fence on it. I’d been scheming on accessorizing my bench dogs a little more, and yesterday, I finally did it:

This stop is nothing more than a piece of a panel that I’ve bored two 3/4″ holes in, and stuffed two of my bench dogs through and into the holes on the bench. There’s another one with two more holes and two more dogs in the tail vise on the other end of the board. Notice how the board is slightly proud of the edge of the bench.

The whole idea is to keep the stop from rotating around in a hole. I didn’t really expect this to work–I thought that the weight of the jointer would tip the board over. But it did work. I had to ease up the rear hole a little (with a half-round rasp) to keep the front of the stop from lifting off the bench.

What’s kind of funny about this is that Lee Valley released something similar to this for planing panels today, except theirs is supposed to be used perpendicular to the way this one sits on the bench. But I’m happy with my low-profile bench dogs for planing panels.

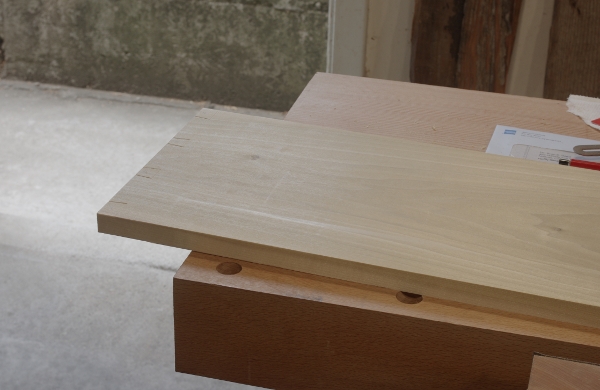

The other difficult situation I ran into was dealing with a dovetail joint on the end of a six-foot board. To cut the tails, I extended the board off the edge of the bench, marked it, and sawed:

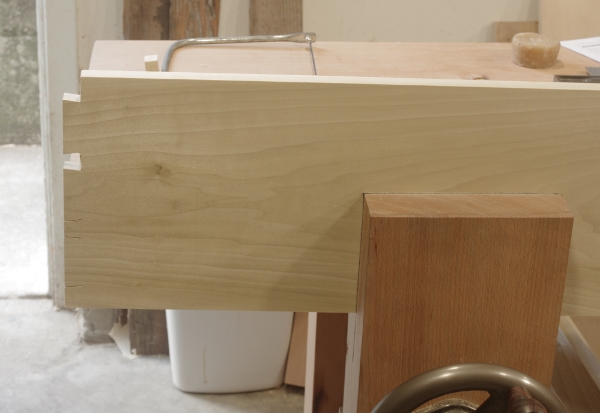

Then I put it in the leg vise (supported on the other side by a holdfast in the other leg) and sawed/pared the tails to completion:

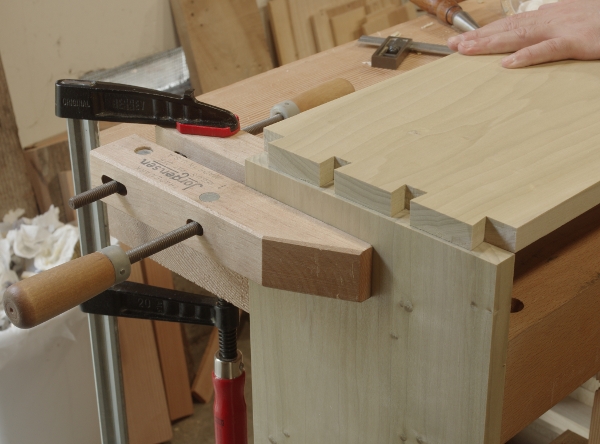

Then I had to mark the pinboard. After a bit of fussing around, I came up with this:

(They’re half-blind dovetails.)
