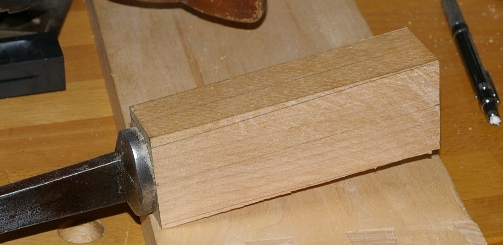

I marked out the angles on the mortise chisel by “feel,” just by sort of looking at all of the pictures I’ve seen and guessing. With two sides cut away, it looked like this:
I cut out these sections with my larger rip saw. It would have taken forever with anything else. Then I used a block plane to smooth around the oval. I nicked the blade of the plane against the chisel bolster doing that. Boo. Grinding that stuff out is always such a pain.
Following the plane, I used a spokeshave to further smooth the oval shape, then, finally, progressive grits of sandpaper on a block to do the final smoothing. This sequence was quick.

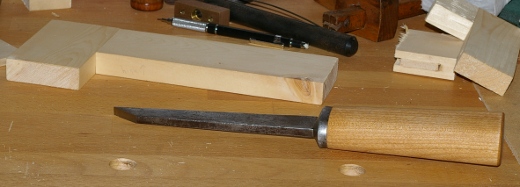

A couple of oil/varnish blend applications later, along with the requisite sharpening, it was ready to use. Here it is with its first test mortise-and-tenon joint (upper left, not that stuff to the right):
It’s a lot of fun to use. Best of all, it’s fast.
I’ve been jonesing for a “real” mortise chisel for a long time now. My obstacle, however, has been the irrational cheapskate inside of me. There’s been a lot written about the English “pigsticker” style of mortise chisel lately, and I’ve been trolling ebay for a cheap one or one without a handle. I finally got my hands on a handle-free sample a couple of weeks ago.
Made by W. Butcher, it has a strange width–something like 9/32″. This is close enough to 1/4″, I guess. Its cutting edge is laminated to a softer metal for the rest of the blade.
Unfortunately, it was dubbed at the tip when I got it, and it was a lot of work to flatten the back (I took the dubbing problem from both ends; shortened it slightly and flattened the rest off). You would think something that small would be easier to flatten, but the steel is really quite hard. I used Norton 3X sandpaper on a granite surface plate, grits 80 on up.

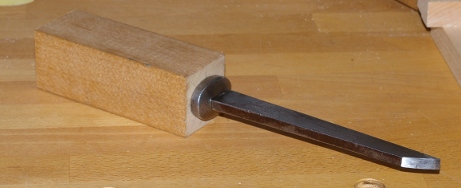

After doing this task, I set out to make a new handle per Derek Cohen’s instructions. Putting in the hole for the tang was a real pain in the ass:
The wood is yellow birch. We’ll see if it holds up. Next step is to shape it, then finish sharpening the blade.

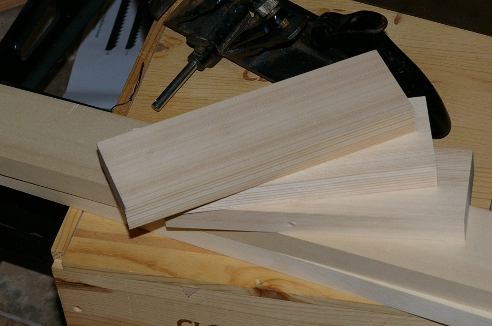

I’m in the process of making a shoe rack. It will basically be two side frames with three shelves, all done with mortise-and-tenon joints. I have most of the wood dimensioned, and have the boards for one of the sides cut to length now:
There are going to be quite a lot of mortise-and-tenon joints in this project. I’ve been practicing, and am getting much better. The fun part is that I’m no longer using the “drill and chop out” method of making the mortise. Now that I have no more downstairs neighbors, I’ve just been chopping the whole thing out with a chisel. It’s noisy and destructive and a lot faster than fooling around with the drills.
This wood is some rather cheap mystery softwood. These boards have a lot of knots in them; in fact, they’re downright tragic if you look at them whole. However, if you buy 10- and 12-inch widths, you get a lot of sections that have clear wood, and you can get cuts that are quartersawn in this way. This is a pretty common trick with softwoods.
The growth rings are very closely packed in some of these boards, but it’s still a rather soft wood, somewhere around the toughness of yellow-poplar (tuliptree). It’s always kind of tricky to make joints in wood like this, but I must admit that there’s a bit of a charge when you succeed.
[Update: Plans are on the Plans and Guides page now.]

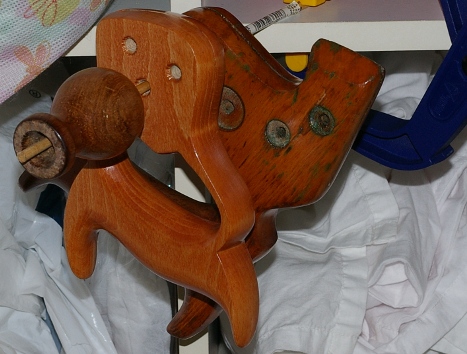

I’m in the process of varnishing four saw handles, a plane tote, and a plane knob. Here are half of the pieces.
As usual, I’m not being terribly speedy here. It’s been seven months since I started working on that tenon saw handle in the center. Things happen but I like to think that sooner or later, I get back to this stuff. (Especially since I’ve had the saw blade sharpened almost since I started on the handle and it’s otherwise ready to go.)
The larger hand saw handle in the rear is for a Disston D-8 that will become one of my new rip saws, somewhere at around 7TPI. This will be in addition to a No. 7 (I think) that’s going to be a larger 4.5TPI rip saw. The handle for that one is also in this batch, thankfully. Both of these handles were glopped over with some awful green paint that I needed to strip before the refinishing process started. What is it with the green paint?
The initial finish on these two handles was a mix of “colonial maple” stain, some satin polyurethane, and tung oil, for an oil/varnish blend (this makes the rays in the beech look nice). After a few coats of that, I’m now putting on satin polyurethane. I like the way that a top coat of polyurethane feels on the other handles I’ve done (as opposed to alkyd varnish and oil/varnish blends), and it seems to hold up better. It takes a little more effort to get polyurethane to look decent, but it’s not that bad.
I think I need one or two more coats on the handles.
The knob is from a Millers Falls #22 jointer plane that’s been waiting for restoration. I did not use the oil/varnish blend on this (or its accompanying tote), because the ray structure in this tropical wood did not seem worth bringing out. I may be done with the plane parts; I’ll evaluate that later.

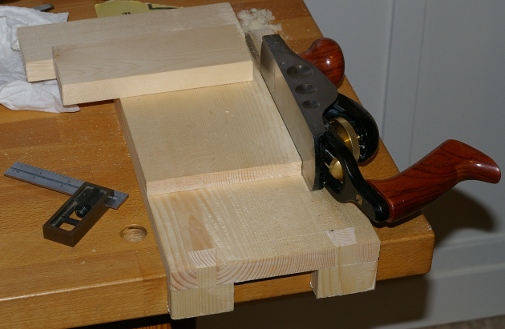

I made a shooting board a couple of weeks ago. As with the bench hook, I don’t know why I did not do this earlier.
As it turns out, there’s a repeating pattern of things I don’t know here. I have no idea why I dovetailed the lip onto the front. I did this on the bench hook, too. It didn’t take long and it wasn’t hard, but why? I also don’t know why I decided to do two little pieces for the front lip instead of one big piece.
The Veritas low-angle block plane works fine for shooting stuff of this width. You could use a low-angle jack plane for this, too. But I now see why people like their miter planes. I don’t really see myself spending so much cash on one of those for this purpose, though.

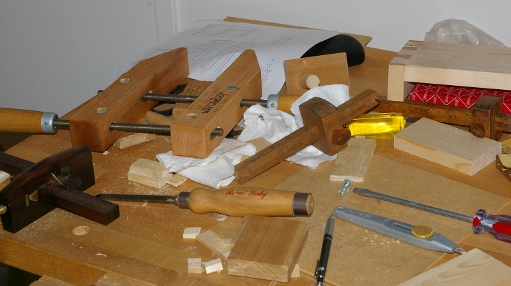

I need to make a rack for my chisels and small saws. The bench is a mess.
